INTROUDUCTION

A foundry brick is a specific shaped refractory which is used in metal castings. Metals are cast into foundry bricks by melting them into a liquid, pouring the metal in a mould, and removing the mould material or casting after the metal has solidified as it cools. The most common metals processed are aluminium and cast iron. However, other metals, such as bronze, brass, steel, magnesium, and zinc, are also used to produce castings in foundries. In this process, parts of desired shapes and sizes can be formed.

MANUFACTURE

In the making of foundry brick, fireclay is fired in the kiln until it is partly vitrified, and for special purposes may also be glazed. Sprue, Bend and Tee are the standard shapes of Foundry brick.

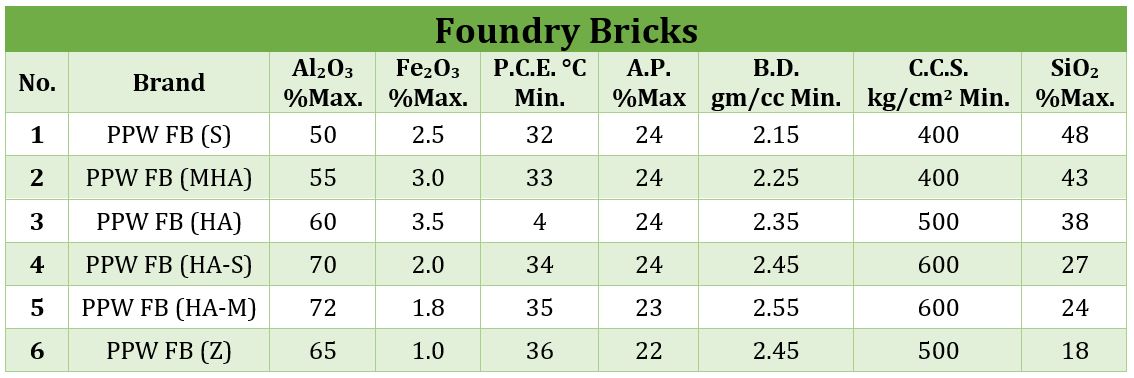

COMPOSITION

Foundry bricks have an aluminium oxide content that can be as high as 50–80% (with correspondingly less silica).

APPLICATIONS

A foundry bricks are used in foundry. Metals are cast into shapes by melting them into a liquid, pouring the metal in a mould, and removing the mould material or casting after the metal has solidified as it cools. The most common metals processed are aluminium and cast iron. However, other metals, such as bronze, brass, steel, magnesium, and zinc, are also used to produce castings in foundries. In this process, parts of desired shapes and sizes can be formed.

STANDARD SHAPES

1. POURING CUP
2. SPRUE
3. BEND
4. TEE
5. CAP

POURING CUP

SPRUE_50 X 25

SPRUE_50 X 50

SPRUE_50 X 100

SPRUE_50 X 150

SPRUE_50 X 200

SPRUE_50 X 300

BEND

TEE

CAP

FUNNEL
