INTROUDUCTION

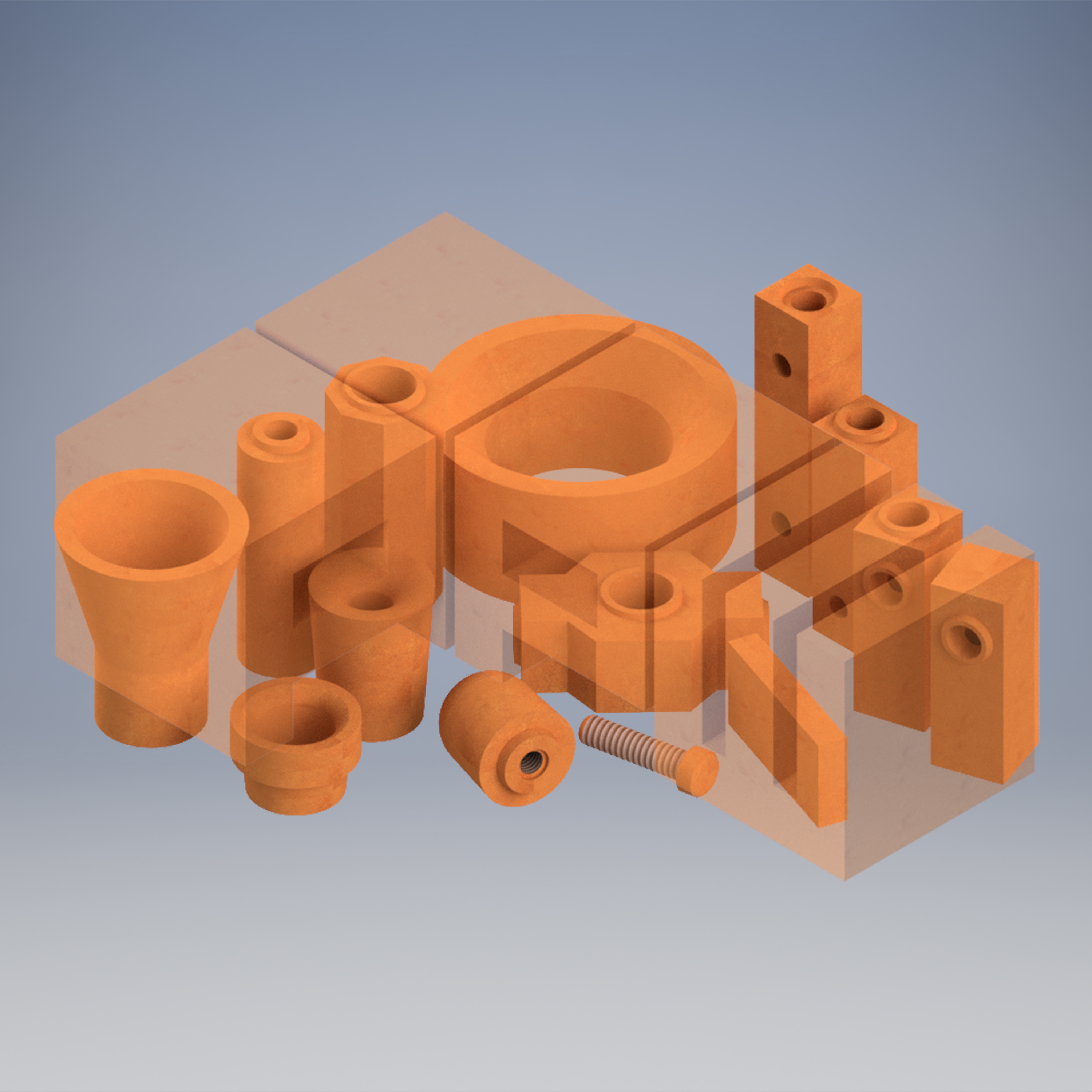

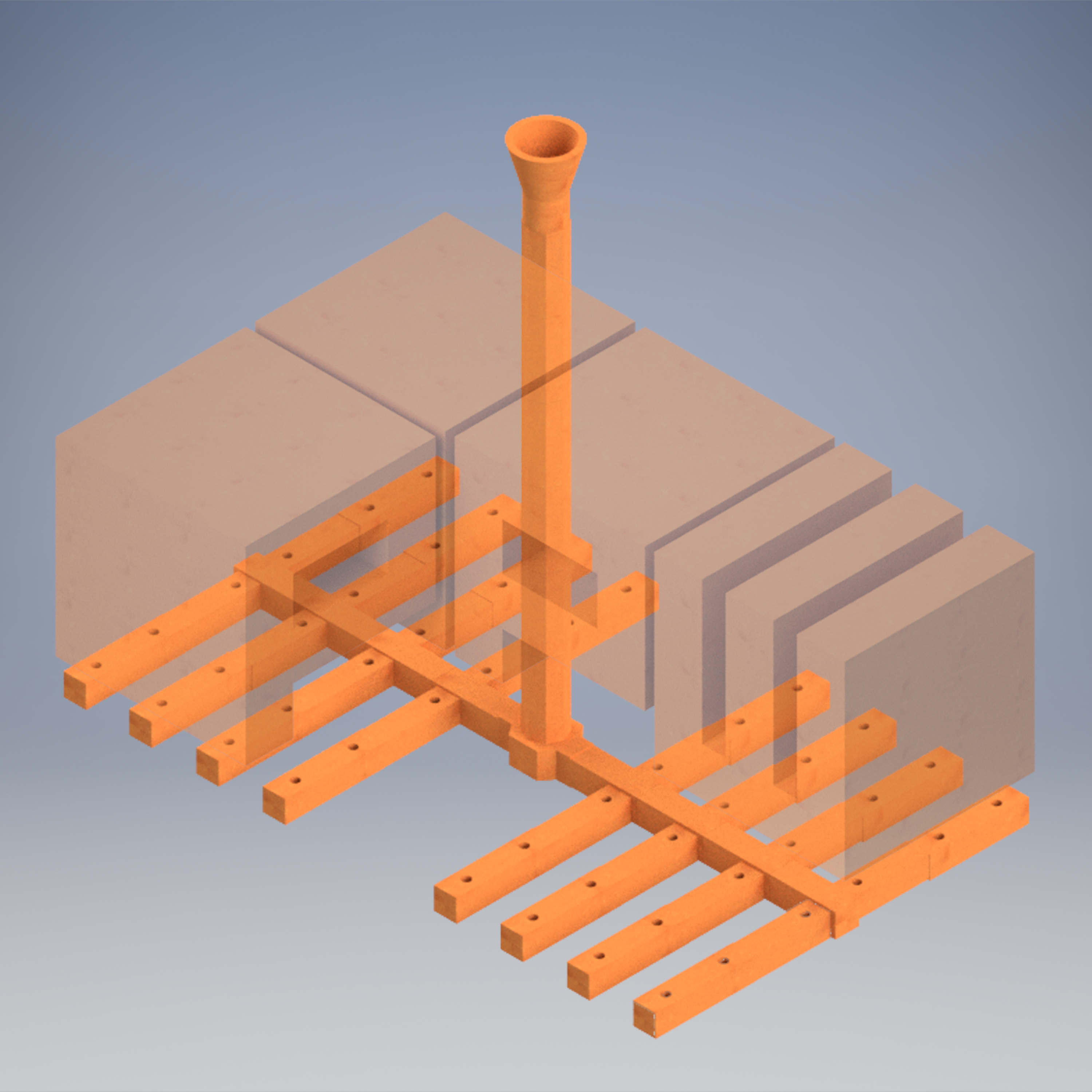

Bottom Pouring Set is a set of different refractory items like funnel, sleeve, centre brick, main channel brick, end channel brick, main connector brick and end connector brick. There are so many different size and grades are available.

MANUFACTURE

Bottom Pouring Set is made from different fractions of refractory grog, plastic fire clays and non-plastic fire clays. The different fractions of these raw materials are mixed and pugged for fully homogeneous mixing. The mixture obtained hence, is then pressed in high capacity presses to give the desired shape and size. These pressed shapes are fired in tunnel kiln at high temperatures.

COMPOSITION

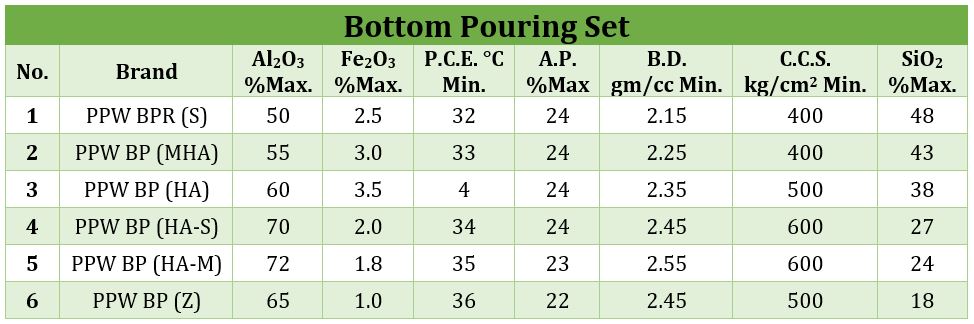

The composition of B. P. Set depends upon the application. Alumina based B. P. Set, Silica Based B. P. Set, etc.

APPLICATIONS

Bottom pouring sets are widely used in various oil refineries, petrochemical plants, paper industry, rolling mills, paint industries, etc.

STANDARD SHAPES

1. LADLE 2. STOPPER
3. NOZZLE
4. FUNNEL
5. SLEEVE
6. CENTRE
7. MAIN CHANNEL BRICK
8. END CHANNEL BRICK
9. MAIN CONNECTOR BRICK
10. END CONNECTOR BRICK
11. TILE
12. TUNDISH COVER
13. WELL BLOCK

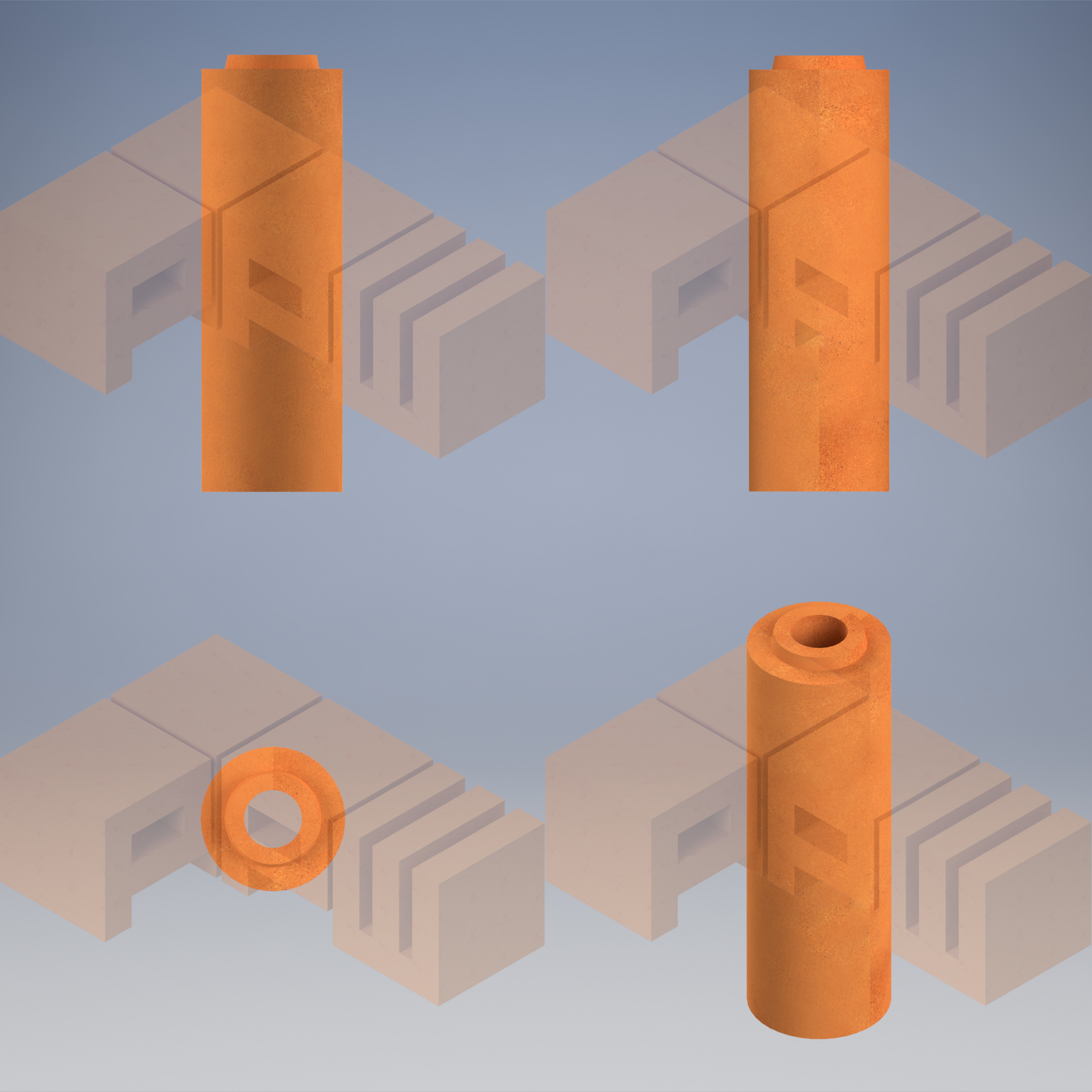

LADLE

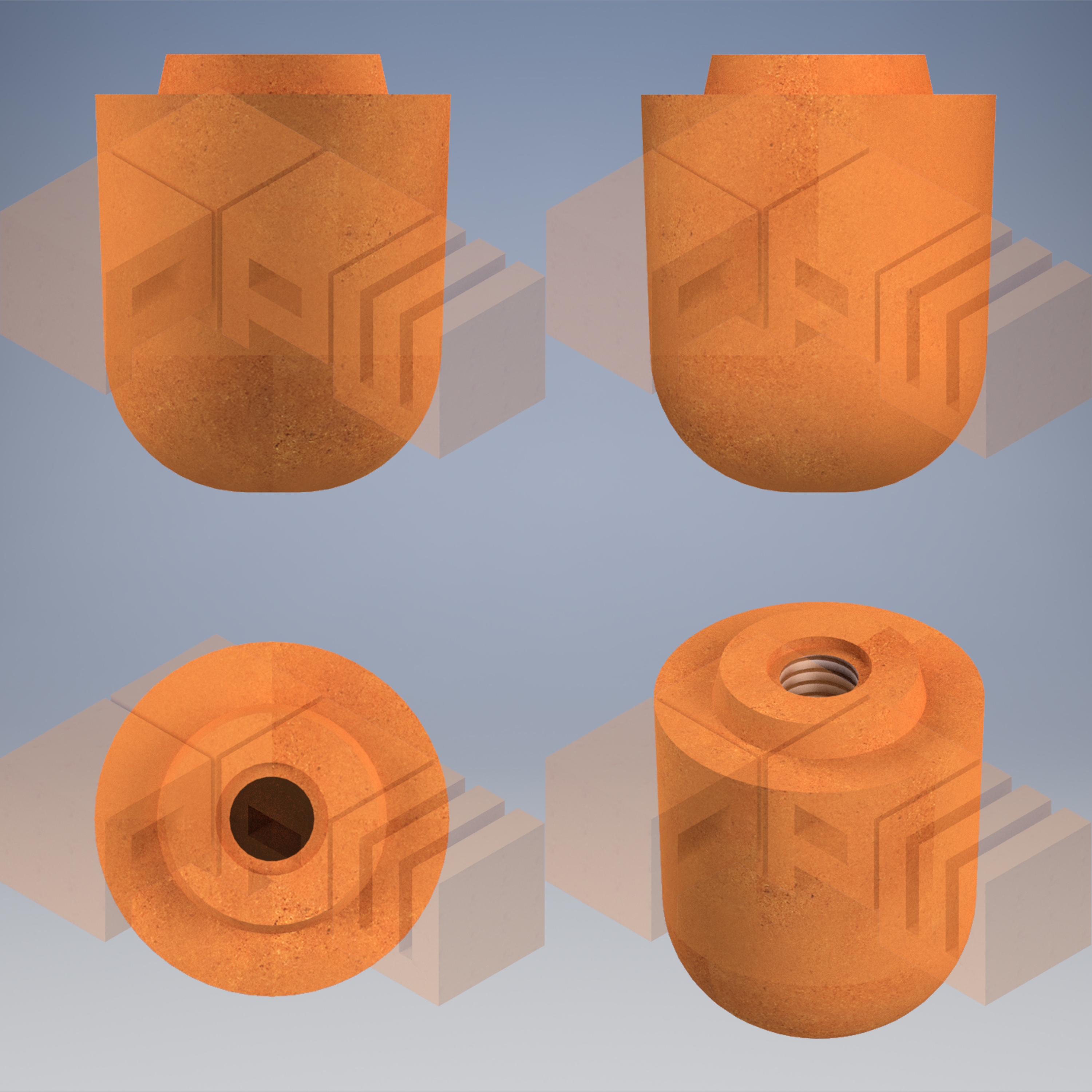

STOPPER HEAD

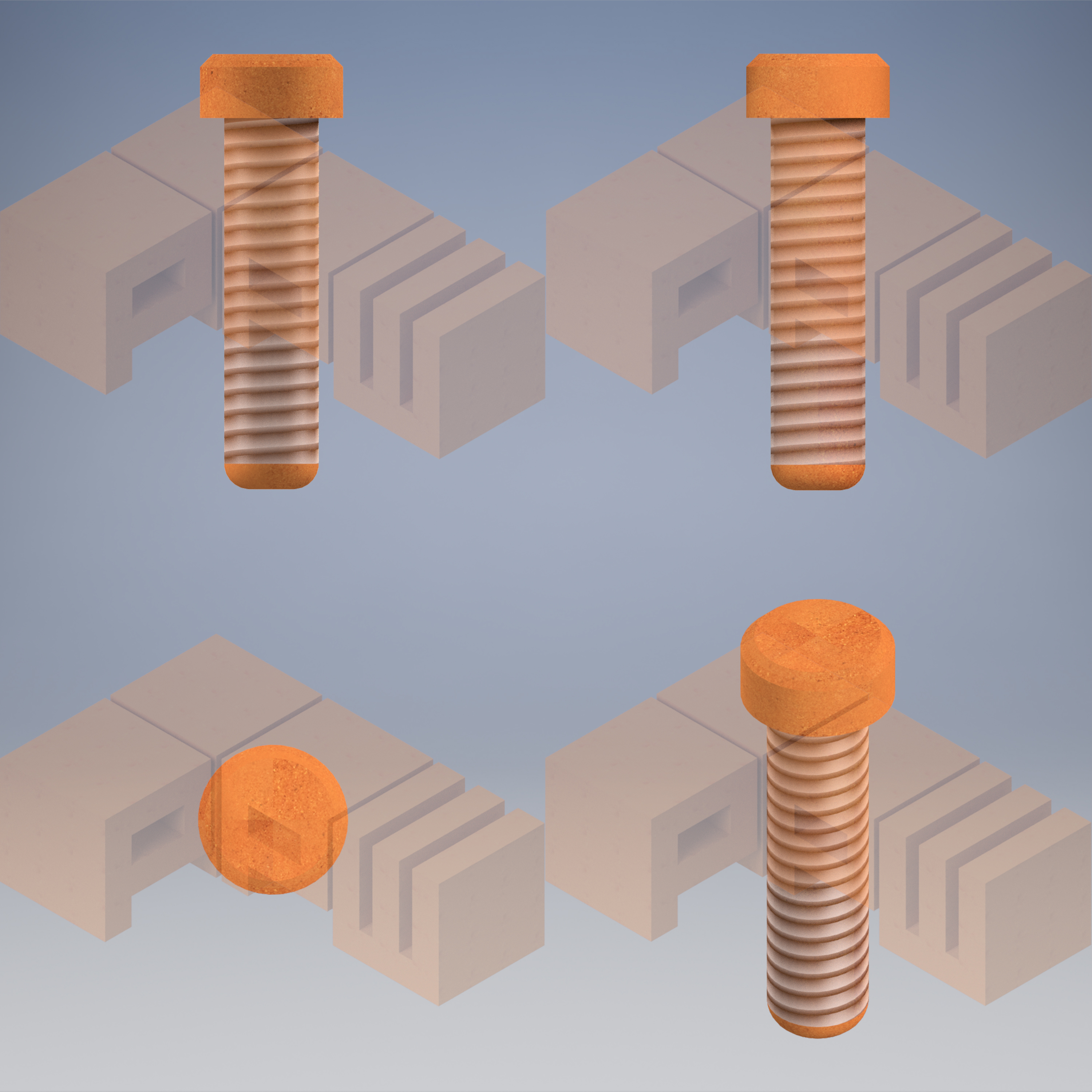

STOPPER PIN

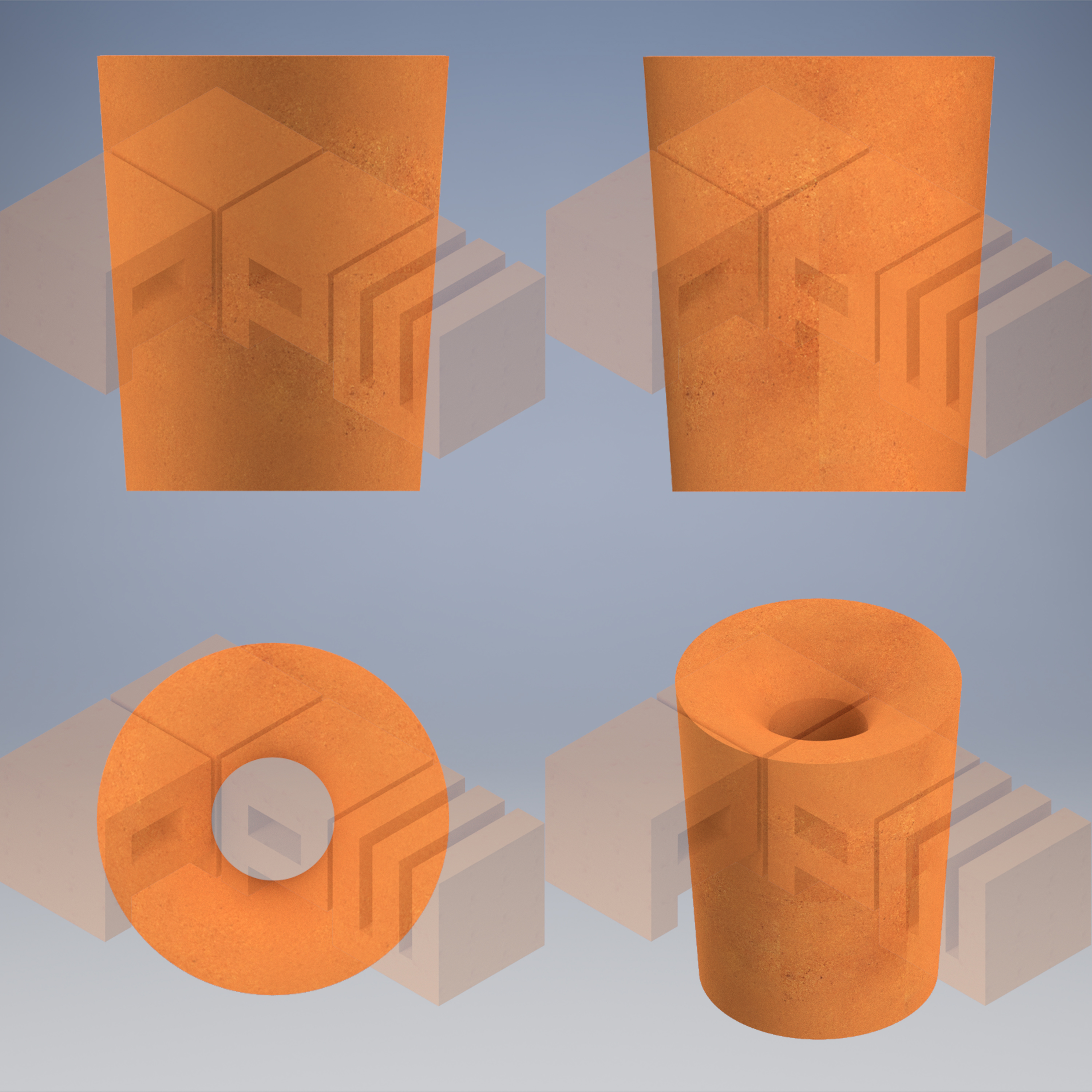

NOZZLE

FUNNEL

MAIN CHANNEL BRICK

END CHANNEL BRICK

MAIN CONNECTOR BRICK

END CONNECTOR BRICK

TILE

TUNDISH COVER

WELL BLOCK
